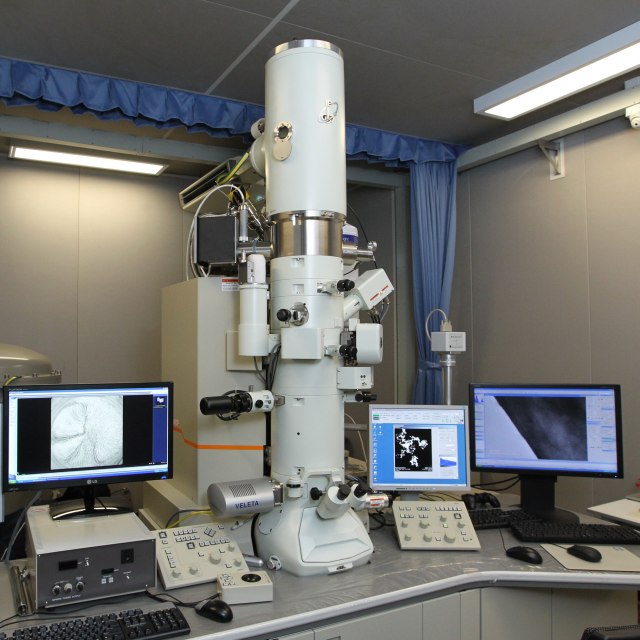

by Electron microscopes use a beam of electrons rather than light to create magnified images of items and materials. Since electrons have wavelengths about 100,000 times shorter than visible light photons, electron microscopes have much higher resolving power than light microscopes and can reveal the structure of smaller objects. The first electron microscope was developed in 1931 by German engineer Ernst Ruska and physicist Max Knoll. Since then electron microscopes have seen rapid advancement and refinement leading to many important discoveries.
Working Principles of Electron Microscope Industry
Electron microscopes work on the principles of electromagnetism and particle-wave duality of electrons. An electron gun at the top emits a beam of electrons which pass through electromagnetic condenser lenses that focus the beam into a very thin beam. The specimen is placed in the path of the electron beam. Electrons interact with the specimen as they pass through it, scattering elastically and inelastically. The electrons carry information about the specimen’s structure. Electromagnetic objective lenses magnify the electrons scattered from the specimen. The finely focused beam scans in a raster fashion across the surface. Secondary electrons and backscattered electrons provide images, while characteristic X-rays are used for analyzing chemical compositions. The images get displayed on a fluorescent screen or are detected by sensors and processors to give the final high resolution image.
Advances in Resolution and Applications
Constant innovation over decades has led to incredible improvements in Global Electron Microscope resolution. While the first microscope had resolutions around 1000 nanometers, today’s advanced models can image as small as 0.05 nanometers – about the size of a single atom. This has allowed electron microscopists to image individual atoms in solid materials for the first time. Electron microscopes are indispensable tools for nanotechnology and molecular biology. They are used to analyze semiconductor devices, biomaterials, catalysts, viruses, and more. Electron crystallography allows determining the atomic structure of new materials. Environmental scanning electron microscopes image larger structures without the need for conductive coatings or high vacuum. STEM microscopes combine imaging and spectroscopy for high resolution chemical analysis.
Global Distribution and Uses
Today electron microscopes are found in every major university, research institute and industrial research lab globally. In 2019, the global electron microscope size was over 5 billion dollars and continues growing steadily. Advanced economies in North America, Europe and Asia lead in terms of availability and utilization of electron microscopes. Industry giants like JEOL, FEI/ThermoFisher, Hitachi and Zeiss dominate. Many industries utilize electron microscopes from materials science to healthcare. For example, semiconductor foundries use them to analyze defects in computer chips and assess nanoscale fabrication processes. Medical device companies image tissues and surgically implanted materials. Nanotechnology firms develop new materials for electronics, energy storage and more with the help of electron microscopes. Their resolution and analytical capabilities have been a driving force behind 21st century developments in science and technology.
Electron Microscopy in Life Sciences
Electron microscopes have revolutionized biology, microbiology and medicine by allowing direct visualization of cells, organelles, viruses and more at magnifications over 1 million times. In medicine, electron microscopy helps diagnose diseases, provides information on tissues for surgery and transplant, and accelerates drug discovery. Cells and tissues can be directly imaged without complex sample preparation to reveal membrane structures, proteins, and other nanometer-scale organelles inside. In virology, electron microscopy visualized viruses like tobacco mosaic virus for the first time and remains an important tool for viral identification and vaccine development. Cell biology research uses electron microscopes to study cellultrastructure, intracellular transport mechanisms, and cell-cell interactions at molecular scales. Advances like cryo-electron microscopy now allow imaging biological samples almost hydrated without chemical fixation – opening new doors of discovery.
Broader Economic and Social Impact
The widespread adoption of electron microscopy has had extensive economic and social impacts around the world. Advanced materials developed using electron microscopes help realize technologies from drug delivery carriers to new battery materials powering society. Manufactured goods from computer chips to solar panels utilize electron microscopy for quality control and process troubleshooting to maintain high yields. In healthcare electron microscopes support medical device innovation, tissue analysis, and pathogen identification to save lives and improve comfort. Research institutions equipped with electron microscopes train hundreds of young scientists annually advancing discovery across disciplines. Developed and developing nations alike have incorporated electron microscopy facilities enabling discoveries for addressing global problems from sustainable energy to disease prevention. Overall electron microscopy has been pivotal to driving innovation, economic growth and social development around the world for over 80 years.
Electron microscopy has evolved tremendously since its inception, yielding astoundingly high resolutions to reveal the atomic world. This has enabled tremendous advances spanning materials science, medicine, biology and more. Today electron microscopes support industry, academia and research globally, underpinning technologies and discoveries impacting our lives. Their broader socioeconomic impact has been immense and their role in driving continued innovation remains indispensable. With further advances on the horizon, electron microscopy will surely maintain its position at the frontier of science and progress for humanity.
